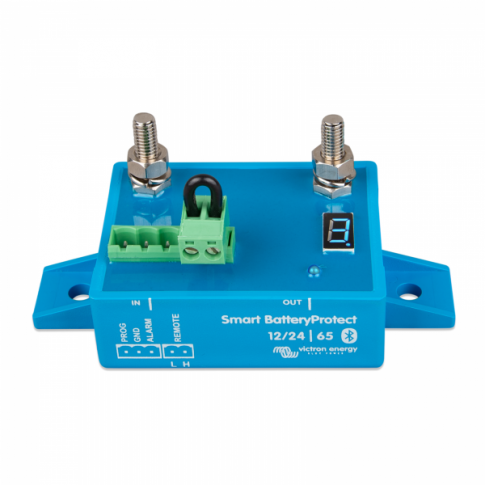

VICTRON ENERGY BATTERY PROTECT 65A 12V/24V

Low voltage disconnect: when battery charge is low, the Battery Protect disconnects the battery from nonessential loads to avoid deep discharge and preserve battery health.

Programmable low-voltage threshold: easily customise the disconnect threshold based on discharging needs.

Overvoltage disconnect: when battery voltage gets too high, the BatteryProtect disconnects the loads to protect them from damage.

Automatic system recognition: the BatteryProtect detects the system voltage (12V or 24V) on start-up, allowing easy installation and setup.

Ultra-low current consumption: avoid further drain on the battery to preserve battery level, especially after low voltage disconnect.

Remote switch and alarm connections: connect input and output relays to control the BatteryProtect remotely, manually turn loads on and off, and use custom alarm systems.

Compatible with Lithium batteries: specialised modes for use with Ve.Bus Lithium battery management systems, and as a charge interrupter for Lithium charging.

Nominal battery voltage: 12V / 24V
Operating voltage range: 6 - 35V
Maximum continuous current: 65A
Peak current (30 seconds): 250A
Current draw: <1.5mA active, <0.6mA during disconnect
Alarm Relay: 50mA
Operating temperature range: -40°C to +40°C (up to 60% capacity at 50°C)

Dimensions: 40 x 48 x 106 mm
Weight: 200g

This product is covered by a 5 year manufacturer warranty.
