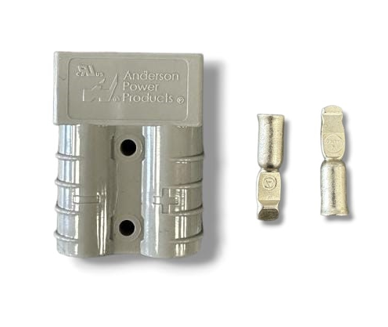

Anderson Connector With Contacts (280A)

Anderson Connector With Contacts (280A)

£8.25 GBP
£8.25 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Terminal Cable Entry Size
View full details

Description

  • The industry-leading Anderson Power Products SB connectors are ideal for quick and easy connection and disconnection of high current cables in applications such as battery charging, jump starting, welding etc. The connectors are genderless so both sides of the connection are identical. Simply turn one of the connectors upside down and slide them together. SB175 connectors are the smallest in the range and suitable for currents of up to 280A

Specifications

Genderless design
Low connection force with high terminal contact force
Connector housings are mechanically keyed by colour to prevent cross-connections
Sacrificial terminal tip to contain damage caused by arc during ‘hot’ disconnect
‘Flat wiping’ action self-cleans the terminal contact faces as they mate
Moulded polarity markings on connector body

Dimensions

16 mm²
25 mm²
35 mm²
50 mm²
